empty boards for general use / cable distribution boards

Uesa GmbH offers a diversified range of housing versions:

  • Distributor columns construction height 1420/1850mm,
  • Columns for general use construction height 1850/2100mm,
  • Boards for general use construction height  850/1100mm,
  • Cable distribution boards, building connection column

Technical data of the housing:

  • Material: full polyester, fibre-glass reinforced
  • Wheather-resistant, impact resistant and shock-proof, flame resistant,
  • Protection class: IP44,
  • Profiled surface as posting protection,
  • Colour: RAL 7035, light grey,
  • Other RAL colours possible,
  • Optional: UV protective coating and graffiti resistant coat,
  • Cable support rail,
  • Depending on construction with swivelling lever handle for profile half cylinder in simple or double closure

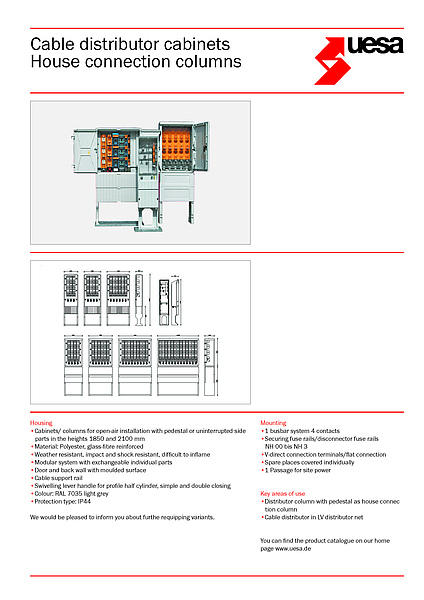

In the catalogue on the download area, you will find a general overview of the housing versions with the corresponding information. We will tell you about other equipment versions on request.

Contact

Frank Drees

+49 (0) 35365 49 - 487
+49 (0) 35365 49 - 495

Enrico Berndt

+49 (0) 35365 / 49 - 480
+49 (0) 35365 / 49 - 161

René Wieser

+49 (0) 35365 / 49 - 447
+49 (0) 35365 49-161



Downloadbereich

cable distribution boards / building connection column
